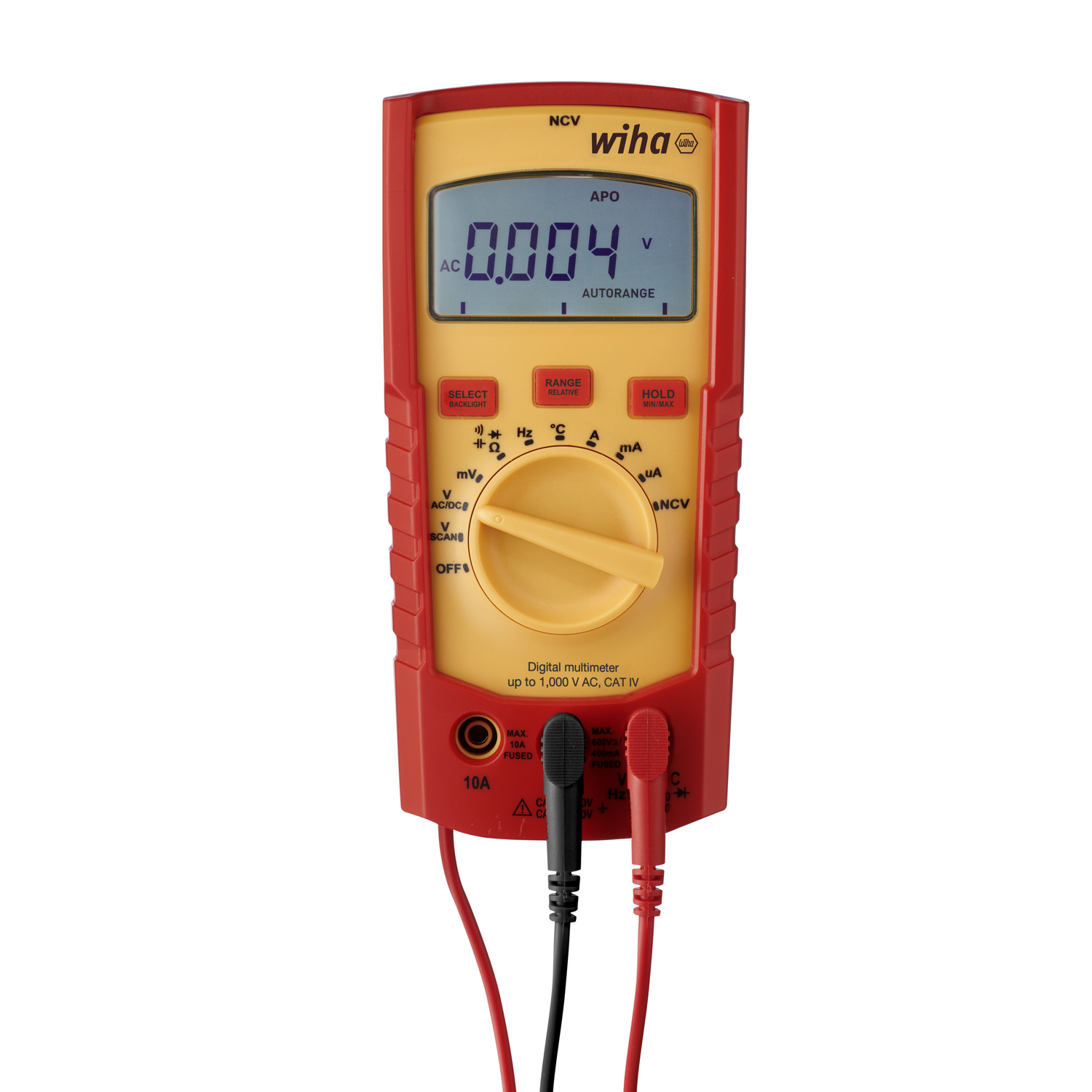

Wiha Digital Multimeter up to 1,00 V AC, CAT IV 45215

Are you looking for a multimeter that covers the relevant measurement variables needed during the workday of an electrician? The digital multimeter from Wiha optimally equips you for a wide variety of measurements. This single tool can be used to make voltage, current, resistance, frequency, capacity, and temperature measurements. In addition, continuity and diode tests are also possible. A large LCD display with background illumination and data hold function makes the measurement results immediately readable even beyond the measurement process. The additional bar graph display ensures the quick and clear recognition of changes. An additional signal sound indicates the current flow during the continuity check. Thanks to the automatic measuring range selection, the manual pre-selection of specific measurement ranges is no longer required. The Measurement of TRUE-RMS values facilitates the application of the measurement results. The storage of previous measurement values and their comparison to future measurement results allows various control options. Add to this optimal result finding through the generation of minimum and maximum values. According to the measurement categories CAT III up to 1000 V AC and CAT IV up to 600 V, the digital multimeter from Wiha offers maximum safety for working on building installations and directly on the sources of low-voltage installations.

Dimensions

150 x 80 x 45 mm

Standards

EN 61010-1, EN 61010-2-033, EN 61010-031, IP40, CE CAT III 1000V / CAT IV 600V

Application

For multi-functional use in different application locations.
